Description

SPECIFICATIONS

Amp Hours: 150Ah

Application: RV,Solar/Wind Devices, RV Battery, On/Off Grid Solar System

Battery Size: 12.8V

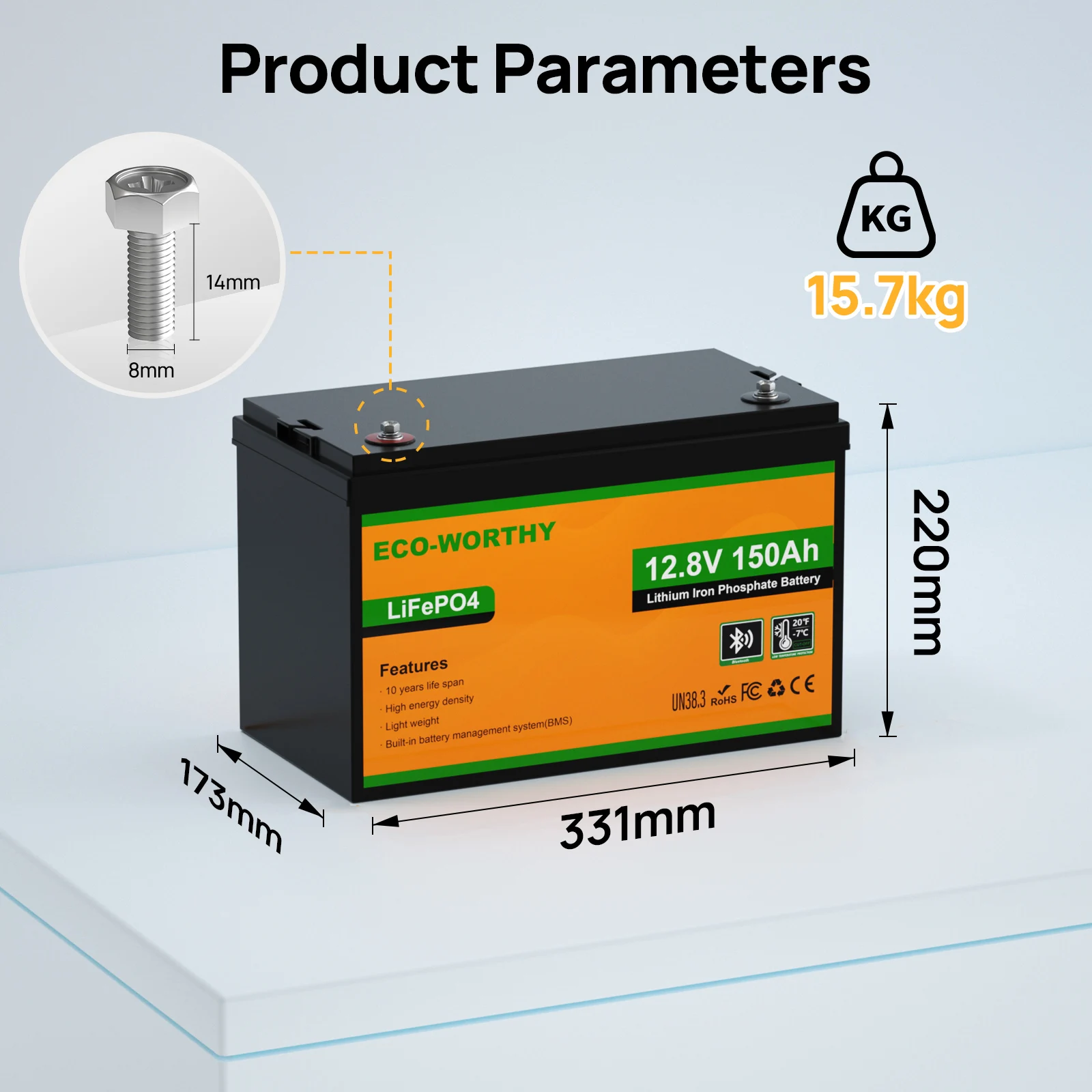

Battery Size(L*W*H): 13.03*6.81*8.66inches(L*W*H)

Brand: Eco-worthy

Brand Name: ECO－WORTHY

Certification: None

Charging Mode: CC CV

Charging Temperature: 32~131℉/0~55 ℃

Charging Voltage: 14.6V

Chemical Composition: Lithium Iron Phosphate (LiFePO4)

Color: Black

Connection: Bluetooth-Compatible

Country/Region of Manufacture: China

Current Type: AC/DC

Discharging Temperature: -4~131 ℉ / -20 ~55 ℃

Energy: 1920Wh

Hign-concerned Chemical: None

Marke: ECO-WORTHY

Maximum continuous charge: 120A

Maximum continuous discharge: 120A

Model Number: 1100700145

Nominal Capability: 150Ah

Nominal Capacity: 150AH

Nominal Voltage: 12.8V

Number of series and parallel connection: 4P4S

Power Source: Solar

Rated Capacity: 150Ah

Rated Voltage: 12V

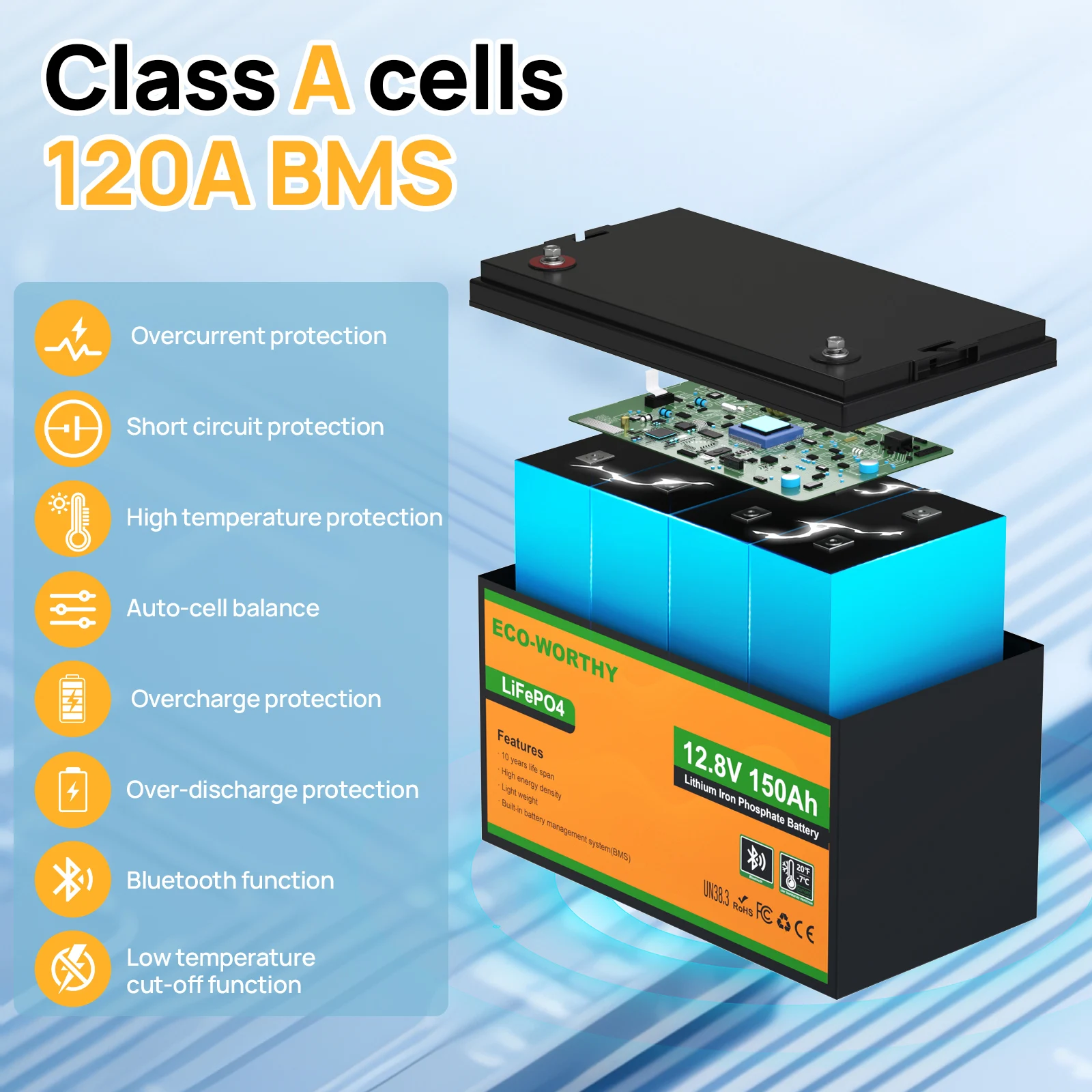

Short circuit protection: Yes

Size: 33.1*17.3*22.0CM

System Configuration: Off-Grid

Temperature Protection: Yes

Type: LiFePO4,Lithium Battery

Voltage: 12V,12V

Voltage at end of Discharge: 10V

Weight: 15.7KG,34.61lbs
